Create a new application in Azure AD

  1. Go to Azure Portal

  2. Enter to your Active Directory managing page

  3. Click on "Enterprise Applications"

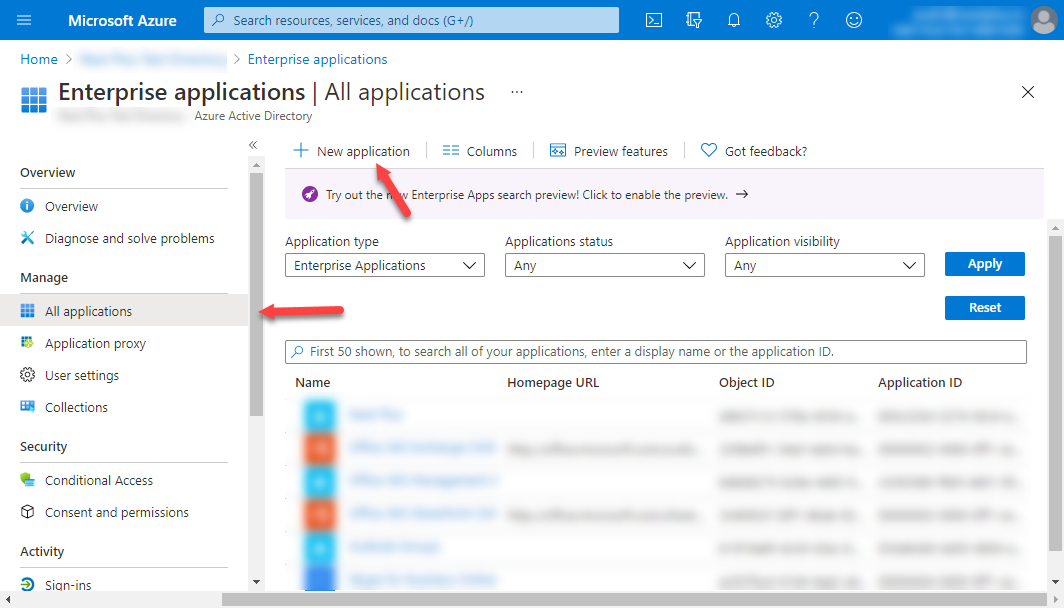

  4. Click on "New Application"

    https://desk.zoho.com/DocsDisplay?zgId=723092357&mode=inline&blockId=ntvshbeae654f7b5545f189649cc737adf447

  5. Click on "Create your own application"

    https://desk.zoho.com/DocsDisplay?zgId=723092357&mode=inline&blockId=ntvshf920549a7db541438a7bb1868b35c2ea

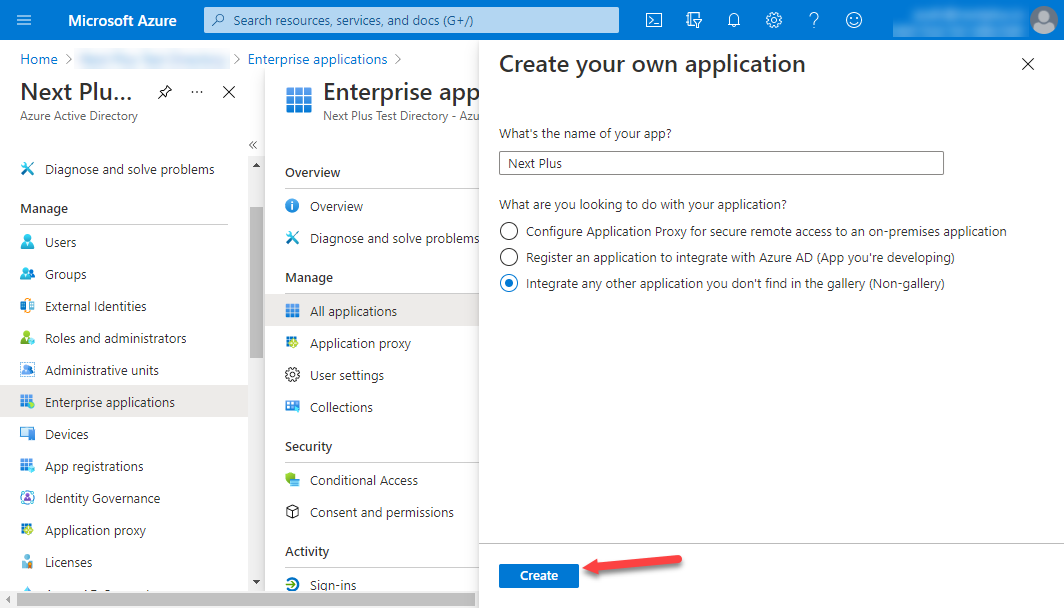

  6. Give it a name and choose the "Integrate any other application you don't find in the gallery (Non-gallery)" option

    https://desk.zoho.com/DocsDisplay?zgId=723092357&mode=inline&blockId=ntvshdf234df507ff4e02b2ad6fade6804634

Set up SSO

<aside> ℹ️ In this manual <baseURL> should be replaced with your instance URL (the one you use when accessing the application from a web-browser)

</aside>

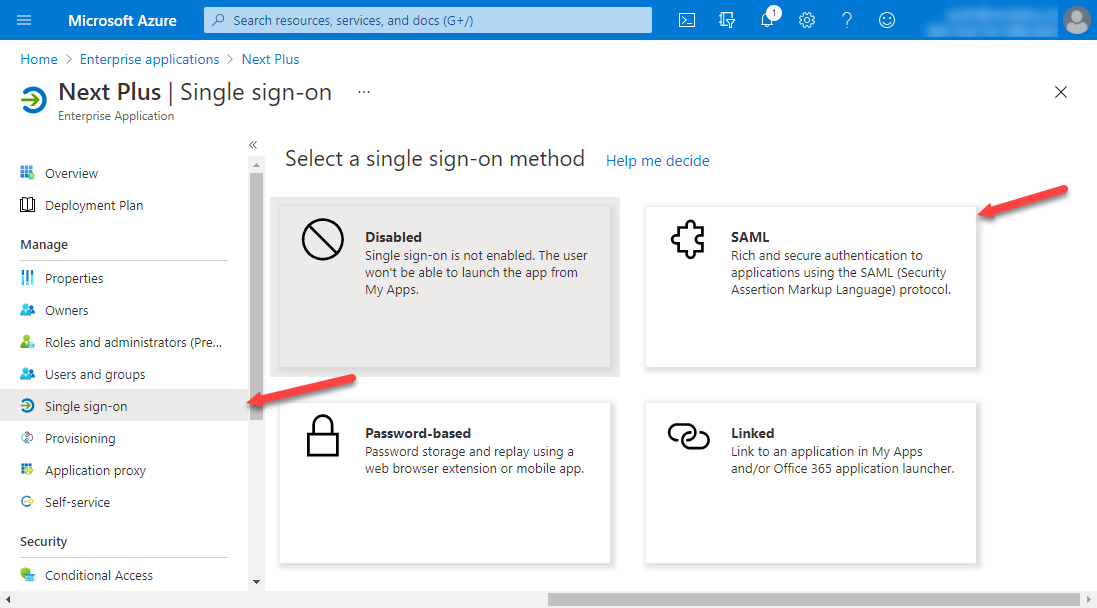

  1. Go to the application overview page and click on "Single sign-on" in the left menu and than click on "SAML"

    https://desk.zoho.com/DocsDisplay?zgId=723092357&mode=inline&blockId=ntvshc4e75f7020e145a1aba27ce38fe85d22

  2. Set the following values in the "Basic SAML Configuration":

    1. Identifier (Entity ID): NextPlus
    2. Reply URL: <baseURL>/api/UserModels/replayFromAuthProvider
    3. Logout URL: <baseURL>

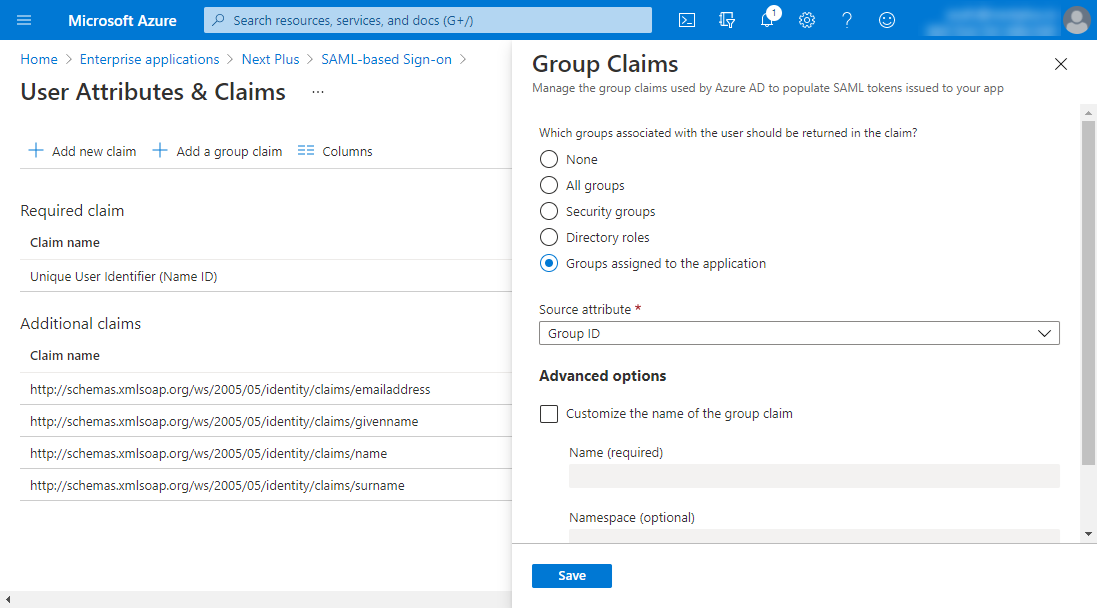

  3. Next, create a new User Claim for groups using the Group ID as the source attribute click on the "Add a group claim" button

    https://desk.zoho.com/DocsDisplay?zgId=723092357&mode=inline&blockId=ntvsh6b433236dec04c1d93150459c776e9a0

Configure user provisioning

<aside> ℹ️ If Next Plus is installed on an on-premise server and Azure cannot access it, please refer to How to configure on-premise provisioning for Azure AD

</aside>

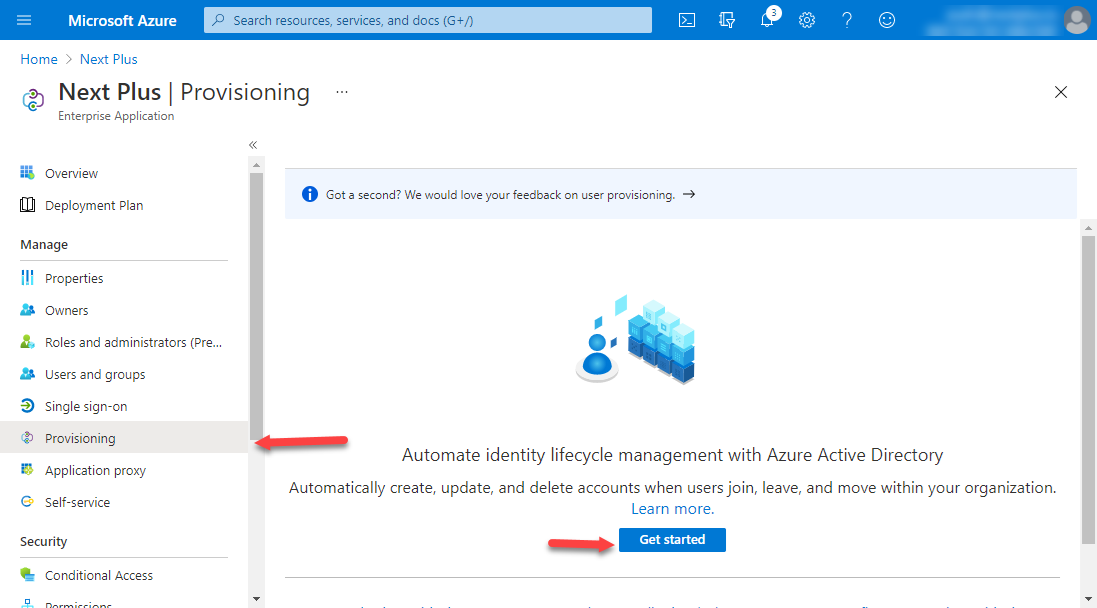

  1. Navigate to the Provisioning page and click on the "Get started" button

    https://desk.zoho.com/DocsDisplay?zgId=723092357&mode=inline&blockId=ntvshd596d0440e0d4fa987a61a1c7e2cf45a

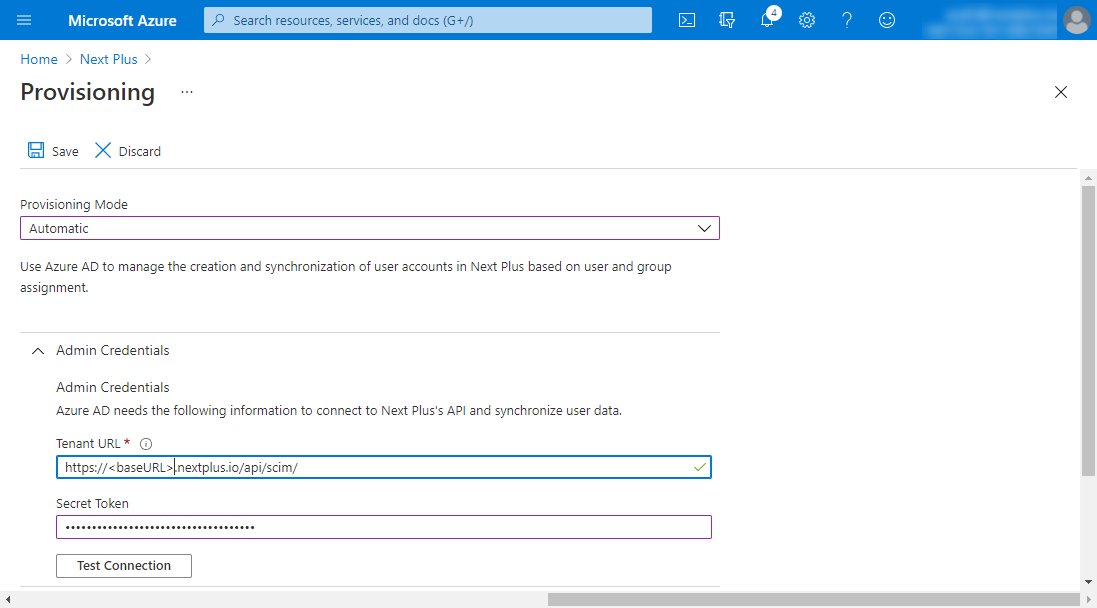

  2. Set "Provisioning Mode" to "Automatic" and set the following values in the "Admin Credentials" section

    1. Tenant URL: <baseURL>/api/scim

    2. Secret Token: Generated when set up in Next Plus

      https://desk.zoho.com/DocsDisplay?zgId=723092357&mode=inline&blockId=ntvshd975efcee0084eddb20ed0e73a1957d4

<aside> ⚠️ Note that the recommended way to assign users to the application is only by assigning them to an assigned group

</aside>

Known Limitation

  1. Due to the nature of SAML, when running a workflow that has a multi-signature step, SAML users will not be able to sign unless they are running the workflow while they are logged in.
