First things first - Add parts to workflow

1. In the workflow properties section, scroll down and click the big BOM button.

2. Click on the Plus button, to add parts to the BOM.

   <aside> ℹ️ If you don't have any parts yet, please visit this article to learn how to create them

   </aside>

3. Assign parts to the workflow

4. Click Save when done.

<aside> ⚠️ The "Rows" selector, does not refer to the quantity needed. It refers to the number of rows this item will have in the BOM. (you can see this as "How many unique callout IDs it has")

</aside>

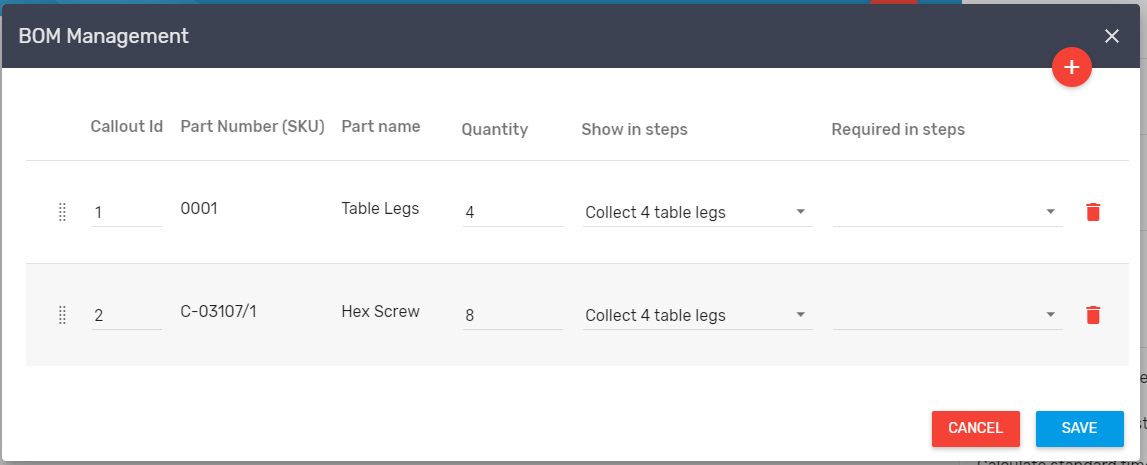

Understanding BOM window

https://desk.zoho.com/DocsDisplay?zgId=723092357&mode=inline&blockId=41ywyc2354b1963714a11b609f1e8ea9ecb60

• Callout Id: The id of the BOM item
• Quantity: How many units are of this part are required in the workflow
• Show in steps: Set in which steps this item will be displayed.
• Required in steps: Set in which steps the item will be required. Whish means that the operator will be asked to select or type in the serial number, or the lot number, for that item.

<aside> 💡 Tip: You can also access the BOM configuration directly from the BOM configuration of a specific step, or multiple steps altogether.

</aside>

<aside> ℹ️ Note that when ERP integration is on, there is no link between the Next Plus BOM items and the BOM of the work order module

</aside>
